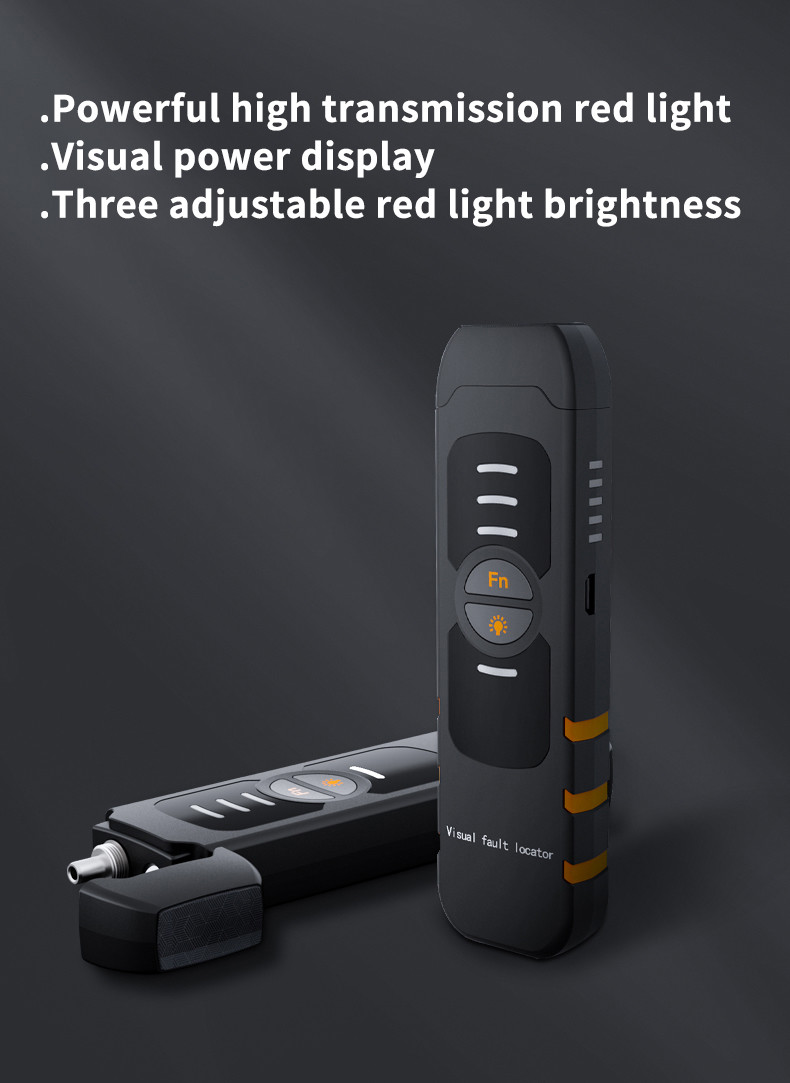

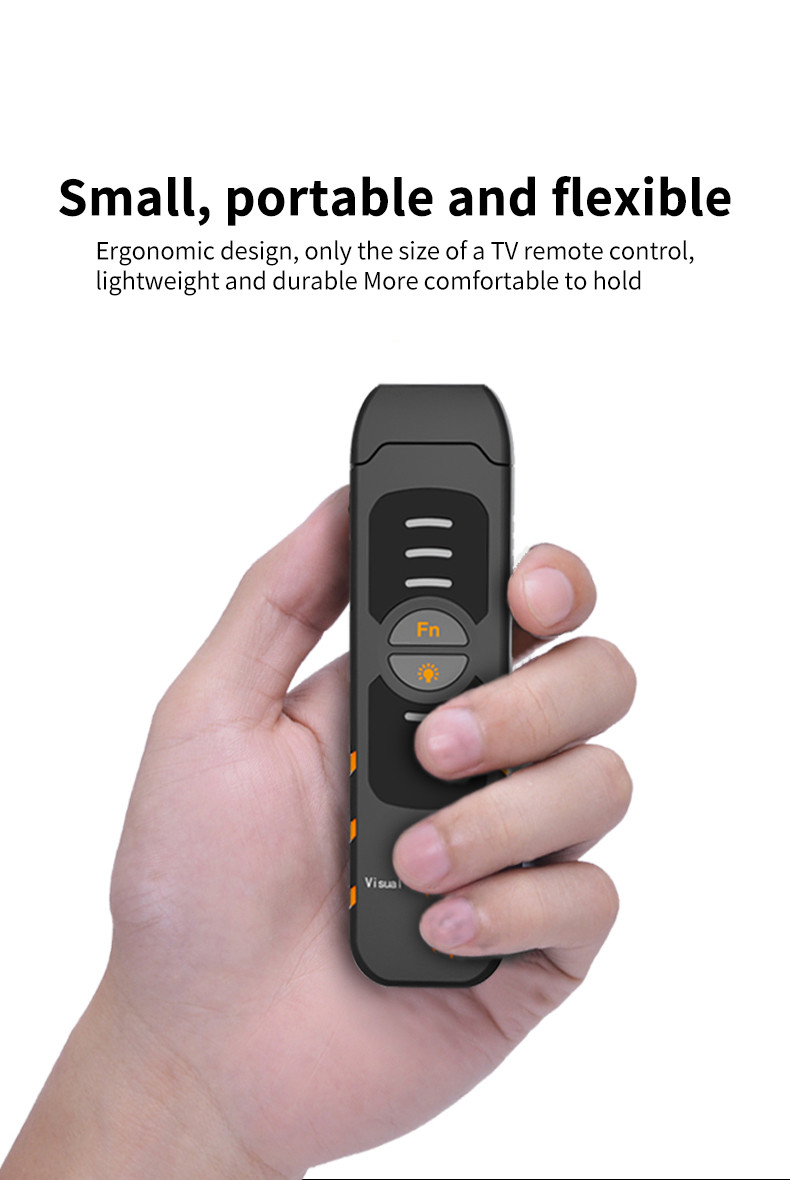

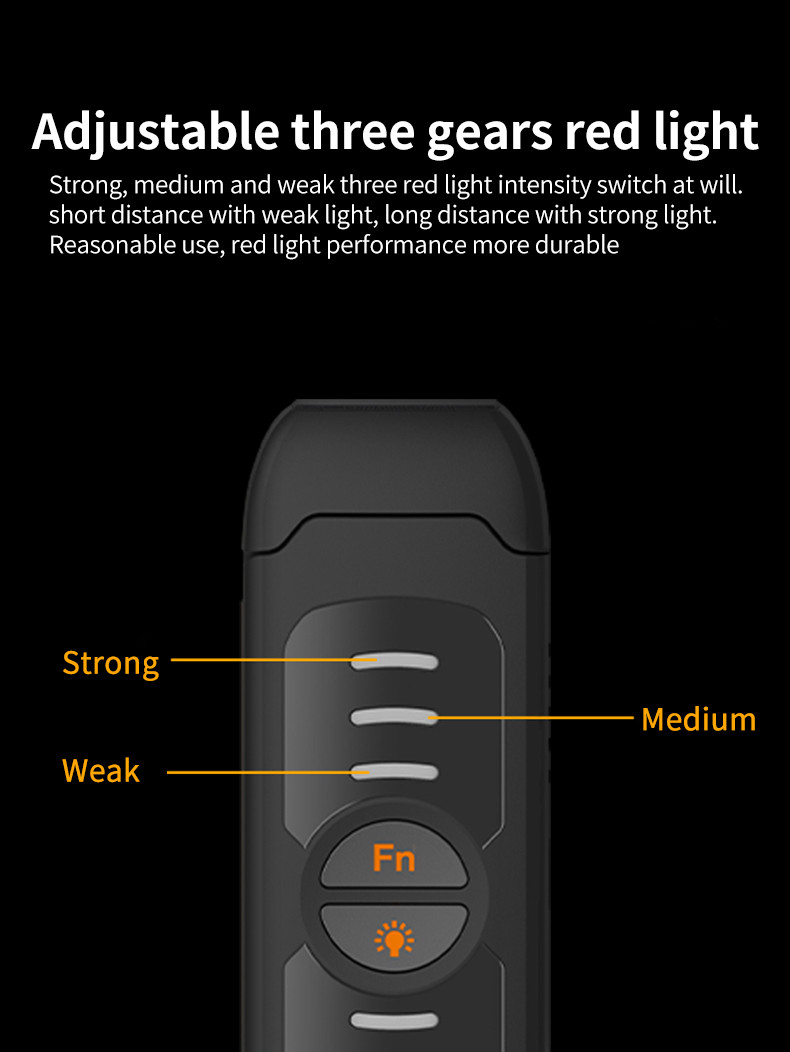

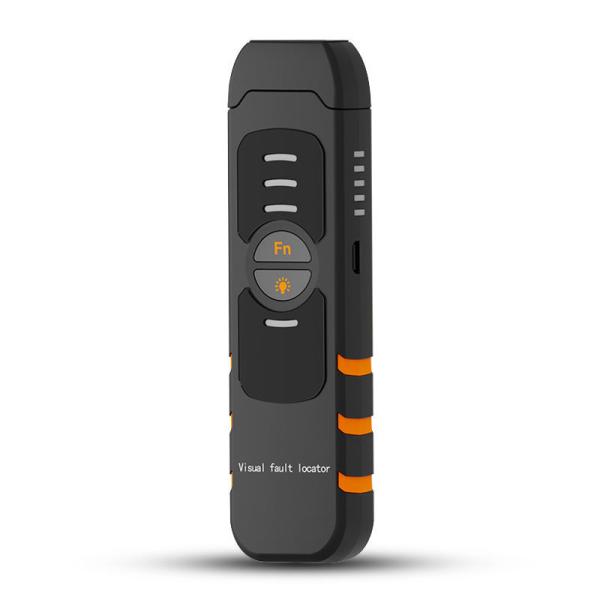

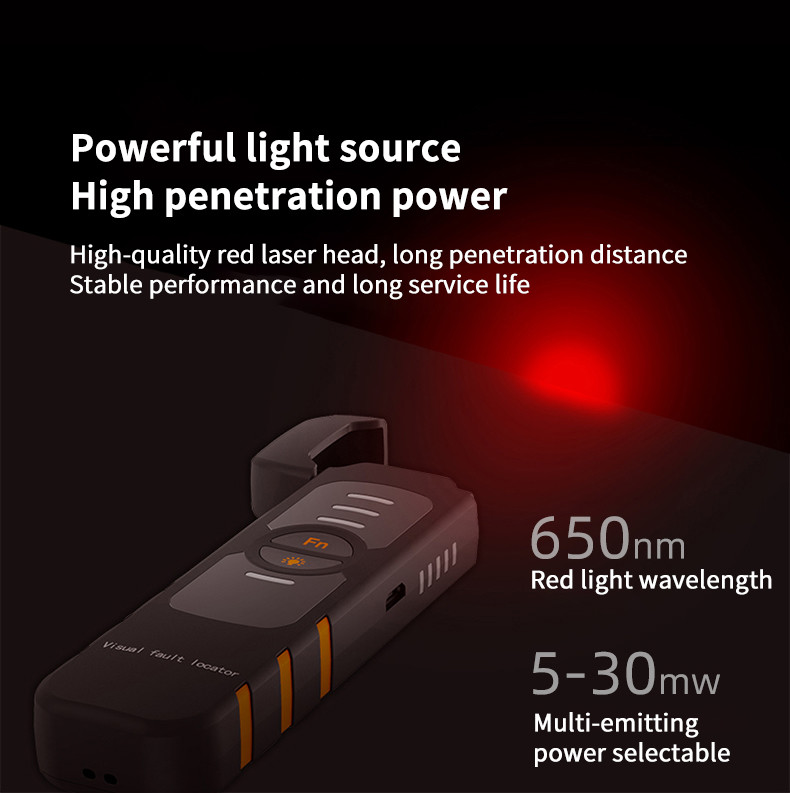

LAN 30mw Visual Fault Locator Fiber Optic Universal Connector

Brand Name : Fongko

Model Number : FKEQU-211

Place of Origin : China

MOQ : 1 Pieces

Price : Negotiatable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Product name : Visual Fault Locator

Application : Telecom Network

Fiber Optic Adapter : Universal Connector

Storage Temperature : -20~70℃

Wavelength : 1310nm/ 1550nm

Output Wavelength : 650nm

Contact Now

5mw 15mw 20mw 30mw Lithium battery 5mw 15mw Dry battery Visual Fault Locator VFL Fiber Optic Cable Red Laser

Introduction:

650nm visual fault locator has the function of fiber identification and faults locator of SM or MM fiber, it is a helpful
assistant to dead zone of OTDR, it is also a basic maintenance tool for fiber network, LAN, ATM fiber system and telecom network system.

Features:

--Support CW and 2Hz modulation work mode
--Solid: use special laser end design to avoid damage when dropping on the floor.
--Long working hours: use effective laser drive circuit to ensure 1mW/650nm locator can work more than 10 hours continuously.
--Stable power output: use special laser driver circuit, which can ensure stable power output in the low battery.
--2.5mm universal adapter: use 2.5mm universal adapter, can match SC/LC adapters.

Wavelength
650nm±10nm
Light source
FP-LD laser
Output power
Dry battery:5mw,15mw
Lithium battery:5mw,15mw,20mW,30mW (optional)
Connector
2.5mm universal adapter
Working mode
CW or 2Hz modulation
Operating temperature
-20~+60 °C
Storage temperature
-25~+70 °C
Power
2pcs AA battery/Lithium battery
Weight
83g

LAN 30mw Visual Fault Locator Fiber Optic Universal ConnectorLAN 30mw Visual Fault Locator Fiber Optic Universal ConnectorLAN 30mw Visual Fault Locator Fiber Optic Universal ConnectorLAN 30mw Visual Fault Locator Fiber Optic Universal Connector
